SPRAYERS

OS-S22-E

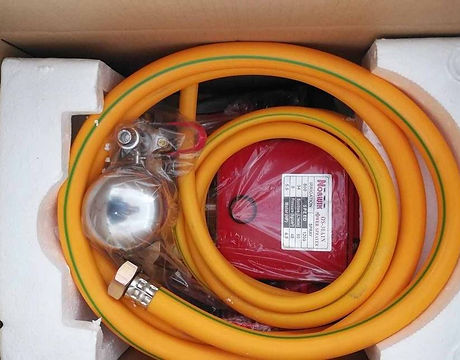

Power sprayer pump OS-22A1N iron head with 6.5hp gasoline engine,white fuel tank and red recoil, with 2.3M inlet and outlet hose, mesh filter 1pc belt 1pc, with 90cm stright gun, with 8.5mm*50m WP:40KG/CM3 hose.

OS-S30-E

Power sprayer pump OS-30A1N iron head with 6.5hp gasoline engine,,white fuel tank and red recoil, with 2.3M inlet and outlet hose, mesh filter 1pc belt 1pc, with 90cm stright gun, with 8.5mm*50m WP:40KG/CM3 hose.

OS-22A1N

Piston*DIA*Stroke: 3*22*16mm,Pressure:0-40kg/cm2

Suction volume:14-22L/min motor:5.5-6.5HP
Speed:800-1200rpm.

OS-30A1N

Piston*DIA*Stroke: 3*30*20mm,Pressure:0-40kg/cm2

Suction volume:34-50L/min motor:5.5-6.5HP
Speed:800-1200rpm.

TF-900

Power (Kw): 1 HP/0.7  KW
Power (Rpm): 6500
Capacity of water tank (L): 25
Capacity of FUEL (L): 0.6
Work Pressure (kgf/cm2): 5-30
Suction Capacity (L/min) 10
Displacement (Cc): 26
Starting System: Recoil
Carburetor Type: Diaphragm
Plastic pump
